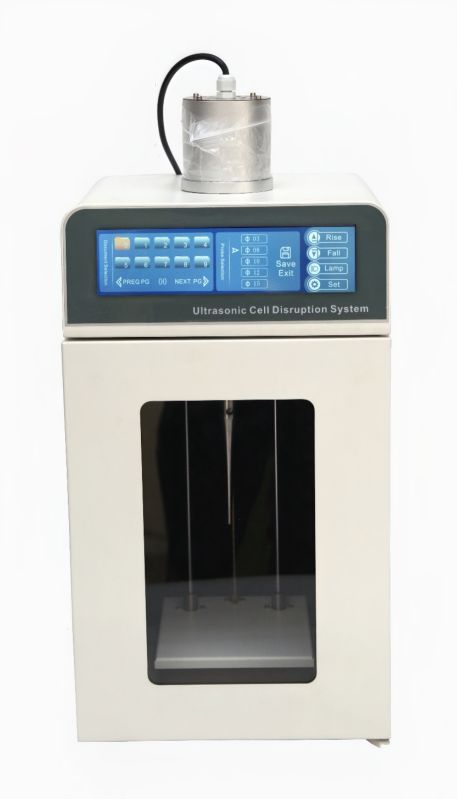

Digital Probe Sonicator

Digital Probe Sonicator

MOQ : 1 Piece

Business Type Manufacturer, Exporter, Supplier
Feature Easy To Operate, High Performance, Rust Proof
Voltage 110V / 220V-240V
Country of Origin India
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Rated Power
250W
Output Power
<= 250W
Frequency Tracking
Automatic Tracking
Maximum Pressure
5Mpa.
Brand
VSI

VSI Electronics Private Limited is an established manufacturer, supplier and exporter of Digital Probe Sonicator from India. Digital Probe Sonicator offered by the company are high on quality, performance and are made of the finest quality raw materials, making them durable and long lasting.

Digital Probe Sonicator (VSI-909) has  Frequency tracking: automatic tracking, power and amplitude adjust: 0-100%, Sonotrode frequency: 20KHz, Operation panel display: time setting working data, working mode: 1s - 99 hours with pause function continuous working, Generator protection: Built-in circuit; Over loading, over temperature, anti-short-circuit, soft start, Rated Power: 250W, Input voltage- 110V/220V-240V, Input frequency: 50Hz-60Hz, Output Power- ≤250W, Max temperature of sonotrode: 100°C, Max pressure: 5Mpa, Treatment capacity of liquid: ≤10L/H.



Note: Appearance & Specifications are subject to change due to continuous development.

Read More...

Yes! I am interested


Technical Specifications of Digital Probe Sonicator (VSI-909

Rated Power 250 W
Input Voltage 110V / 220V-240V
Input Frequency 50Hz – 60 Hz
Output Power <= 250 W
Frequency Tracking Automatic Tracking
Power and Amplitude Adjust 0-100%
Sonotrode Length 120mm.
Sonotrode Diameter 8mm.
Sonotrode Frequency 20KHz.
Operation Panel Display Time Setting Working Data
Working Mode 1s – 99Hours with pause function continuous working
Generator Protection Built-in Circuit, Over Loading, Over Temperature, Anti Short-circuit, Soft Start
Cable Length 2 Mtr.
Environment Temperature 0 – 40 Deg.C
Relative Humidity <= 85%, T= 20 Deg.C
Max. Temperature of Sonotrode 100 Deg.C
Max. Pressure 5 Mpa
Treatment Capacity of Liquid <=10 L/H
Breaker Type for Batch 20ml – 200ml.
Packing Size 32 x 46 x 42 cm.
Machine Weight 7 Kg.
STANDARD ACCESSORIES AN ABS SOUNDPROOF BOX, A STAINLESS STEEL LIFTING PLATFORM, 3 FUSE AND INSTRUCTION MANUAL.
