Digital Tablet Disintegration Test Apparatus

1 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier, Trader
Country of Origin India
Type Digital Tablet Disintegration Tester
Brand Name VSI
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Easy To Use, Proper Working, Superior Finish, Auto Stop After Completion Of Set Time With Alarm
Type of Heating
Hot Plate
Up-Down Speed
30 +/- 2 Strokes/min.
Up-Down Length
55 +/- 5mm.
Time Control
Digital (Programmable from 1 Sec to 99Hr, 59min., 59 sec.)
Electric Motor
Low rpm A.C. Motor
Number of Baskets
Two in Model VSI-20 // One in Model VSI-21
Payment Terms
NEFT, IMPS, DD, D/P, T/T, Other
Product Code
VSI-20, VSI-21
Mohali / New Delhi (India)
Delivery Time
Ready Stock or within 7-10 days

VSI Electronics Private Limited is one of the renowned manufacturer, supplier and exporter of hi-tech instruments used in the pharmaceutical industries, institutions and research laboratories. We are considered as predominant Tablet Disintegration Test Apparatus manufacturer, supplier and exporters from India. The Microprocessor Tablet Disintegration Apparatus and the Digital Tablet Disintegration Apparatus are designed for accurate estimation of disintegration time of tablets as per IP/USP standards. Our Disintegration Test Apparatus are designed to test the two batches of six tablets, simultaneously.


VSI Electronics Private Limited is also counted among the leading manufacturer and supplier of other instruments like Double Beam UV-VIS Spectrophotometers, UV-VIS Spectrophotometers, Visible Spectrophotometers, Fluorometer, Dissolution Apparatus, Disintegration Apparatus, Friability Apparatus, Melting Point Apparatus, Bulk Density Apparatus, Tap Density Apparatus, pH Meters, Conductivity Meters, TDS Meters, Dissolved Oxygen Meter, Turbidity Meters, Nephelometers etc. from India.


Model Available: VSI-20, VSI-21 and VSI-19

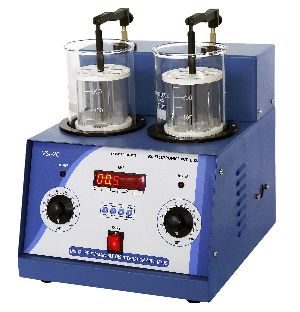

Digital Disintegration Test Apparatus (With Two Baskets), VSI-20 measures disintegration time of 12 tablets/capsules at one time.  Disintegration time is displayed on LED display.


Digital Disintegration Test Apparatus (With One Basket), VSI-21 measures disintegration time of 12 tablets/capsules at one time.  Disintegration time is displayed on LED display.


Salient Features :

  • Programmable Time with Digital Display
  • Auto Stop after completion of Set time with Alarm
  • Memory for Protection of Running Test in case of power failure
  • Separate Regulator for Control of Heating
  • Facility for Hold & Resume the Running Test for inspection of sample


Note : Appearance & Specifications are subject to change due to continuous development.


We also offer Microprocessor Disintegration Test Apparatus, Model VSI-19

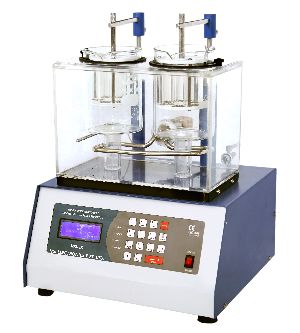

Microprocessor Disintegration Test Apparatus (2 Basket) VSI-19 with 20x4 line alphanumeric LCD display, 20 Setups storage facility, 1000 sample storage facility, Dual temperature sensor control of Water bath and Beaker and USB interface for computer connection available.



  • Complies with USP, IP Specifications
  • Extremely Useful for Pharmaceutical Labs
  • Highly Accurate and Easy to Operate
  • Baskets “UP & DOWN” movement as per IP/USP Specifications
  • 20 x 4 Line Alphanumeric LCD with Backlit
  • 15 Soft Touch Membrane Type Keys
  • 20 Setup Storage Facility
  • 400 Samples Storage Facility
  • USB Interface available
  • Audio Visual Indicators for System Status

Yes! I am interested

Technical Specifications Of Microprocessor Disintegration Test Apparatus (Vsi-19)

Display 20 x 4 Lines Alphanumeric LCD Display with backlit
Keyboard 15 Soft Touch Membrane Keys
LED’s 4 LEDs available for different status indications
3 LEDs for Test Status like Run, Alarm, End and
1 LED for heater ON/OFF status
Setup Data Facility for 20 different Test Setups available
Printer Provision for the attachment of dot-matrix printer with Centronics parallel port interface
Speed 55mm. 30 ± 1 strokes per minute
Resolution 1 Second – 99 Minutes
Temp. Range 20 – 50 Deg.C
Temp. Accuracy ± 0.2 Deg.C
Temp. Control Microprocessor based using PT-100/Semiconductor Sensor
Reaction Beaker 1000 ml.
Heater 0.4 KW (Approx.)
PC Connectivity USB Interface available
Power 230 V ± 10% 50 Hz AC
Size (LxBxH) 365 x 350 x 495 mm (Approx.)
Weight 9 Kg. Approx.
STANDARD ACCESSORIES External Temperature Sensor, Mains Lead & Instruction Manual.
