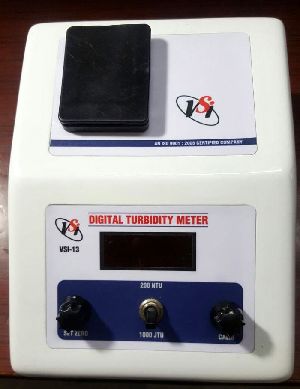

Microprocessor Based Turbidity Meter

Microprocessor Based Turbidity Meter

MOQ : 1 Piece

Business Type : Manufacturer, Exporter, Supplier

Product Details

Type Turbidity Meter
Brand Name VSI
Material ABS Plastic Cabinet
Shape Rectangular
Feature Sewage & Drinking Water Testing
Display Type Alphanumeric LCD Display

Additional Information

Product Code VSI-702

Preferred Buyer From

Location Worldwide

Microprocessor Based Turbidity Meter – (VSI-702) is designed to provide the precise Turbidity & Temperature measurements in the samples. It is extremely useful for measurement of suspended solids/turbidity levels in Sewage Water, Ground Water, Potable Water, Soil Analysis Laboratories, Fisheries, Water Quality Control in Boiler Feed Water, Water Works Department, Breweries, Water Purification Plants, Chemical & Pharmaceutical Industries, etc.



SALIENT FEATURES

  • 16 x 2 Lines Alphanumeric LCD Display
  • Turbidity & Temperature Measurement Simultaneously
  • Automatic Range Selection in Turbidity
  • 1000 Samples Storage Facility
  • Computer/Printer Attachment Facility

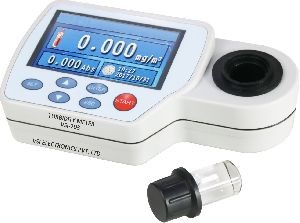

We also offer High Precision Portable Turbidity Meter (VSI-703)

Portable High-Precision Turbidity Meter (VSI-703), Range 0-4000 NTU in 4 ranges, Minimum readout 0.001, Useful for Drinking Water, Surface Water, Circulating Water and Sewage complete with standard accessories.  Power: Lithium Battery, Output Micro USB, 4.3 inch colored TFT screen.



SALIENT FEATURES

  • 4.3 Inch coloured TFT screen with friendly UI
  • Contain 200 curves and customize high precision test curve according to measurement ranges.  Users can set up different piecewise curve and co-efficient subject to different concentrations which will literally improve measurement precision.
  • ARM9 main control chip makes operations easy, response quick and big storage up to 500M.
  • Adopt special and high precision light filter system to ensure the instrument’s stability and accuracy.
  • Cold light source, narrowband interference with long life time up to 100,000 hours.
  • Bench-Top Type: Data transfer to PC via USB interface and optional Bluetooth transmission.
  • Portable Type: Advanced power management system can show the battery status in real time and be charged via USB port on PC or vehicle.

Note : Appearance & Specifications are subject to change due to continuous development.

Read More...


Yes! I am interested

Submit Your Requirement


Technical Specifications of Microprocessor Turbidity Meter (VSI-702)

Function Turbidity & Temperature Simultaneously
Display 16 Characters x 2 Lines Alphanumeric LCD
Display Format Temperature & Turbidity Simultaneously
TURBIDITY MEASUREMENT
Range 0 – 1000 NTU in Two Ranges
Resolution 0.1 NTU in lowest Range
Accuracy ± 3% FS ± 1 Digit
Range Selection Automatic
Detector Photodiode/Photocell
Sample System 30 mm. Clear Glass Test Tube
Calibration Manual
Light Source 6 V Tungsten Lamp
TEMPERATURE MEASUREMENT
Range -20˚C to +200˚C
Resolution 0.1 ˚C
Accuracy ± 0.1% of Range ±1 Digit
Calibration Two Point Manual
Sensor Pt-100 Probe
GENERAL
Data Entry By Six Soft Touch Keys with Audible Sound
Storage Memory 1000 Samples
Real time display 24 Hour Mode with Date
Interface RS-232, Centronics & Computer
Print Format All Data & Date Wise (Programmable)
Digital Output Serial RS-232 & Parallel Centronics
Power Supply 230 V ± 10%, 50 Hz AC
STANDARD ACCESSORIES Temperature Probe, Test Tubes, Data Cable & Instruction Manual.

Technical Specifications of Portable Turbidity Meter (VSI-703)

Type Portable
Description High-Precision Turbidity
Minimum Readout (NTU) 0.001 NTU
Measuring Range (NTU) 0-10
0-100
0-1000
0-4000
Basic Error +/- 3% FS
Repeatability <= 0.5%
Zero Drift +/- 0.5% FS
Applications Factory Condensate Water, Domestic Sewage
Power Lithium Battery 3.7V / 5200 mA
Output Micro USB
Instrument Size / Net Weight 210 x 105 x 65mm / 500 gms.
Shipping Size /Gross Weight 300 x 240 x 90mm / 1 Kg.
STANDARD ACCESSORIES Cuvette Cup – 2 Nos., Charger – 1 No., Instrument case – 1 No.,
Instruction Manual – 1 No.
