Digital Melting and Boiling Point Apparatus

Digital Melting and Boiling Point Apparatus

MOQ : 1 Piece

Business Type Manufacturer, Exporter, Supplier
Type Melting & Boiling Point Apparatus
Certification CE & ISO 9001:2015 Certified
Temperature Range 2 Deg.C above Room Temp. to 300 Deg.C
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Color
Blue
Display
4 digit Seven Segment LED Display
Power Supply
230V +/- 10%, 50Hz AC
Readability
1 Deg.C / 0.1 Deg.C
Warranty
1yrs
Automation
Automatic
Product Code
VSI-41 & VSI-42

Hailing from Punjab, we are an established Manufacturer, Supplier and Exporter of Digital Melting & Boiling Point Apparatus. Precisely designed and constructed, our apparatus is used for quick and accurate measurement of melting points. Bulk orders of these are processed by us as per the specific requirements of the buyers within the promised timeframe. The entire range of the Melting Point Apparatus is reasonably priced by us.



VSI Electronics Private Limited offers various models of Melting & Boiling Point Apparatus to suit the need of different customers. The Melting point apparatus is designed to determine the melting points with high accuracy, and is supplied with a silicon oil bath with heater for heating the bath. The unit has an arrangement to hold the capillary containing the sample in uniformly heating media.



VSI Electronics Private Limited is also counted among the leading manufacturer and supplier of other instruments like Double Beam UV-VIS Spectrophotometers, UV-VIS Spectrophotometers, Visible Spectrophotometers, Fluorometer, Dissolution Apparatus, Disintegration Apparatus, Friability Apparatus, Melting Point Apparatus, Bulk Density Apparatus, Tap Density Apparatus, pH Meters, Conductivity Meters, TDS Meters, Dissolved Oxygen Meter, Turbidity Meters, Nephelometers etc. from India.



Model Available : VSI-41, VSI-42, VSI-43, VSI-44 and VSI-45

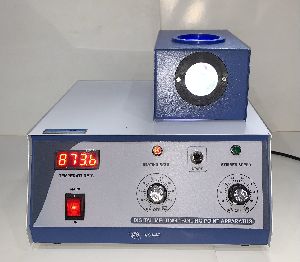

The Digital Melting/Boiling Point Apparatus (VSI-41 & VSI-42) is designed for quick & accurate measurement of melting points and for checking the melting range of the solid samples. The Digital Melting Point Apparatus consists of silicon oil bath of about 200 ml capacity, covered with Teflon cover, fitted with a special type of oil immersion heater. The Digital Melting Point Apparatus consists of in-built magnetic stirrer, with indicator for precisely adjusting the rate of heating of silicon oil-bath, an On/Off switch, a pilot lamp, with fitted magnifying glass, a temperature probe and a glare free background illuminator. The temperature is indicated on a digital display readable in 1.0 Deg.C (In VSI-41) and 0.1 Deg.C (In VSI-42).  These instruments are useful in Chemical Industries, Pharmaceutical Industries, Petrochemical Industries, Food, Plastic and various other Industries, Research & Technical Institutions



SALIENT FEATURES

  • Extremely Useful for Pharmaceutical Use
  • Highly Accurate & Easy to Operate
  • Cylindrical Silicon Oil-Bath
  • Built-in Magnetic Stirrer with Electronic Speed Controller for Uniform Heating
  • Electronic Controller for Adjusting the Heating Rate
  • Digital Display of Temperature with PT-100 Probe
  • Glare-Free Background Light with Adjustable Light Intensity
  • Provision for Holding the Melting Point Display



Application : Chemical Industries, Pharmaceutical Industries, Petrochemical Industries, Food, Plastic and various other Industries, Research & Technical Institutions

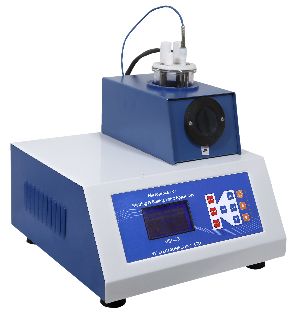

Microprocessor based Digital Melting / Boiling Point Apparatus (VSI-43) with resolution 0.1 Deg.C to measure Melting Point/Boiling Point of solid and liquid samples up to the Temperature Range of 300 Deg.C.



SALIENT FEATURES

  • Microprocessor Based Instrument for precise results.
  • User Friendly and Menu Driven Software.
  • 128 x 64 Graphical LCD.
  • Sample detection indication on LCD screen.
  • Three different modes - (Rapid, Normal & Slow).
  • Facility to enter batch number while storing sample results.
  • USB Port for interfacing the system with PC.
  • Internal storage capacity of 1000 logs with Date, time and batch number.
  • Compact instrument thereby saving precious space.

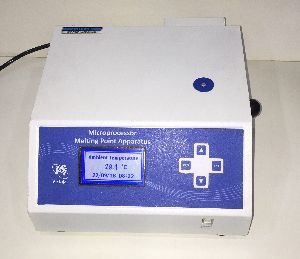

Microprocessor Melting Point Apparatus (VSI-44) with readability/resolution of 0.1 Deg.C, No silicon or other bath is required as heating media, Range up to 300 Deg.C, with 128x64 large graphical LCD display, Two point temperature calibration,, Automatic detection of temperature rise & fall, Computer interface through USB, Internal storage capacity of 1000 logs with date and time, complete with standard accessories.



SALIENT FEATURES:

  • Microprocessor Based Instrument for precise results.
  • User Friendly and Menu Driven Software.
  • 128 x 64 Graphical LCD.
  • Two point temperature calibration.
  • Sample detection indication on LCD screen.
  • Three different modes - (Rapid, Normal & Slow) for sample testing.
  • Indicate the heating Mode with Temperature while sample Reading.
  • Automatic detection of temperature rise & fall.
  • USB Interface.
  • USB Port for interfacing the system with PC.
  • One can see the stored logs on the system before printing
  • Internal storage capacity of 1000 logs with date and time

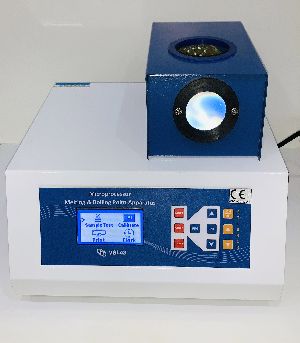

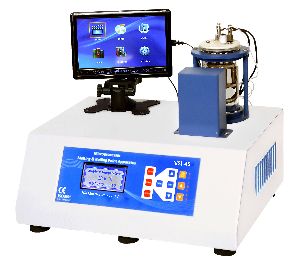

Microprocessor based Digital Melting / Boiling Point Apparatus with Camera (VSI-45) with resolution 0.1oC to measure Melting Point/Boiling Point of solid and liquid samples, Temperature Range 0-300oC with 7” TFT Screen & Camera.



SALIENT FEATURES

  • Microprocessor Based Instrument for precise results.
  • User Friendly and Menu Driven Software.
  • 128 x 64 Graphical LCD.
  • 7” TFT LED HD Display.
  • HD Camera to view capillaries
  • Sample detection indication on LCD screen.
  • Three different modes - (Rapid, Normal & Slow).
  • Facility to enter batch number while storing sample results.
  • USB Port for interfacing the system with PC.
  • Internal storage capacity of 1000 logs with date and time.
  • Compact instrument thereby saving precious space.

Note: Appearance & Specifications are subject to change due to continuous development.

Read More...

Yes! I am interested


Technical Specifications of Digital Melting and Boiling Point Apparatus (VSI-41 & VSI-42)

MODEL VSI-41 VSI-42
Temperature Range 2 Deg.C above Room Temp. to 300 Deg.C 2 Deg.C above Room Temp. to 300 Deg.C
Readability 1 Deg.C 0.1 Deg.C
Display 4 digit Seven Segment LED Display 4 digit Seven Segment LED Display
Capillary Glass Tube – for Melting Point 100mm long, 0.8 to 1.1mm internal diameter 100mm long, 0.8 to 1.1mm internal diameter
Glass Tube – for Boiling Point 6 x 75mm. Glass Tube 6 x 75mm. Glass Tube
Sample Size Fine powder properly dried at a temperature considerably below its melting point, 4 to 6mm. high Fine powder properly dried at a temperature considerably below its melting point, 4 to 6mm. high
Oil-Bath Silicon Oil Bath Beaker-200ml. capacity with Teflon cover fitted with oil immersion heater. It is having three holes - one for holding the capillaries, one for boiling point tube and one for the Temp. Probe/thermometer Silicon Oil Bath Beaker-200ml. capacity with Teflon cover fitted with oil immersion heater. It is having three holes - one for holding the capillaries, one for boiling point tube and one for the Temp. Probe/thermometer
Stirrer Speed Control Electronic Electronic
Temperature Probe PT-100 PT-100
Power Supply 230V +/- 10%, 50Hz AC 230V +/- 10%, 50Hz AC
STANDARD ACCESSORIES A Box of 100 Capillaries, Bottle of Silicon Oil-250ml., Magnetic Capsule, Glass Cylindrical Beaker with Teflon cover fitted with immersion Heater, Temperature Probe and Instruction Manual. Tubes for Liquid Sample (6x75mm) - 4 Nos. (Optional on demand).
