Digital Automatic Viscometer

Digital Automatic Viscometer

MOQ : 1 pieces

Business Type Manufacturer, Exporter, Supplier, Trader
Type Digital Viscometers, Viscometers
Feature Accuracy, Easy To Use, Proper Working, Sturdy Construction, Superior Finish
Condition New
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Warranty
1yr
Uses
Viscosity Measuring
Display
LCD
Measuring Range
1 0- 1 X 1 0 (5) M Pa.s // 10 M Pa.s- 1,00,000 Mpa.s // 1 Cpa.s = 10 Mpa
Spindle Numbers
4 Spindles
Rotor Speed (rpm)
6/12/30/60
Accuracy
+/- 5% Newtonian Fluid
Overall Dimensions
340 X 420 X 470 Mm.
Net Weight
9 Kg.
Brand
VSI
Payment Terms
NEFT, IMPS, DD, D/P, T/T, Other
Product Code
VSI-28
Port
Mohali / New Delhi (India)
Delivery Time
Ready Stock or within 7-10 days

VSI Electronics Private Limited is an established manufacturer, supplier and exporter of Digital Automatic Viscometer from India. Digital Automatic Viscometer offered by the company are high on quality, performance and are made of the finest quality raw materials, making them durable and long lasting.

Digital Automatic Viscometer (VSI-28) having advantage of high accuracy, stable digital display.  Easy to operate and good anti-interference.  It is widely used in the measurement of viscosity of various kinds of fluids such as grease, paints, food, medicine, adhesive and cosmetic etc.  It can also be used for liquids.  Its large LCD display measurement range is 10 to 200,000 mPas with 4 Spindles, 6/12/30/60 RPM Rotor Speed.

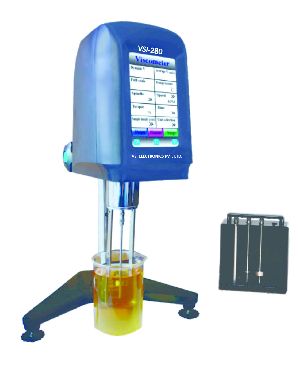

We also offer Touch Screen Digital Automatic Viscometer (VSI-280) having advantage of high accuracy, stable digital display. Easy to operate and good anti-interference. It is widely used in the measurement of viscosity of various kinds of fluids such as grease, paints, food, Medicine, adhesive and cosmetics etc. It can also be used for liquids. Its large LCD display measurement range is 20 to 2000,000 (m Pas) with 4 Spindles, 0.3/06/1.5/3/6/12/30/60 rotor speed RPM.


SALIENT FEATURES

  • Stepping Motor means Accurate, Reliable Operation
  • Direct readout of all measurement parameters
  • Auto Range of Showing
  • Time Function for measurement
  • Sound Alarm at under 20% Torque
  • Linear Calibration
  • Wide Range Power Supply: 100V-240V

Note: Appearance & Specifications are subject to change due to continuous development.

Read More...

Yes! I am interested


Technical Specifications Of Touch Screen Digital Automatic Viscometer (VSI-280)

DISPLAY LCD Touch Screen
MEASURING RANGE (mPa.s) 20 – 2,000,000 (m Pa.s)
SPINDLE NUMBERS 4 Spindles
ROTOR SPEED (RPM) 0.3, 0.6, 1.5, 3, 6, 12, 30, 60
NO. OF STANDARD SPINDLES #1, #2, #3, #4 is standard configuration
MEASUREMENT ACCURACY ± 1.0% of Range
REPEATABILITY ± 0.5%
TEMPERATURE RTD MONITORING
SENSOR PROBE Yes
OUTPUT RS-232 Interface
POWER SUPPLY 220V 50Hz AC
DIMENSION (LxWxH) 400 x 350 x 360 mm.
NET WEIGHT 9 Kg.
STANDARD ACCESSORIES Ascending & Falling Rack – 1 Set,
Protective Frame of Rotor – 1 No.,
Rotors – (No. 1,2,3,4 each),
Power Adapter – 1 No.,
Spanner – 1 No.,
Screwdriver – 1 No.,
Socket – 1 Set
